Box Beams

Box Beams

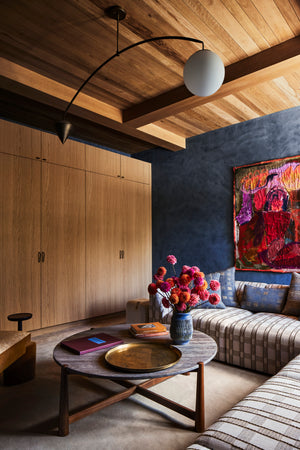

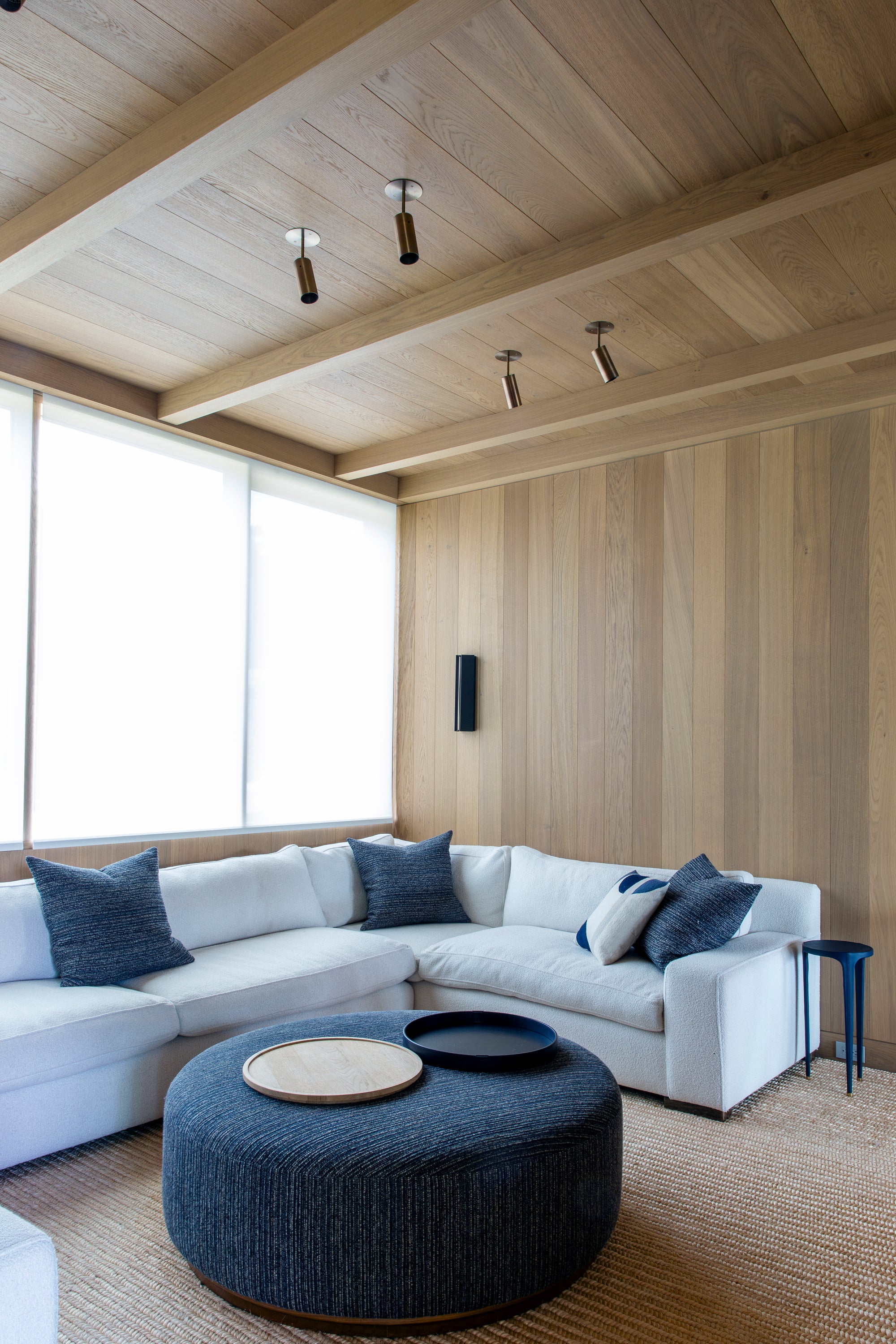

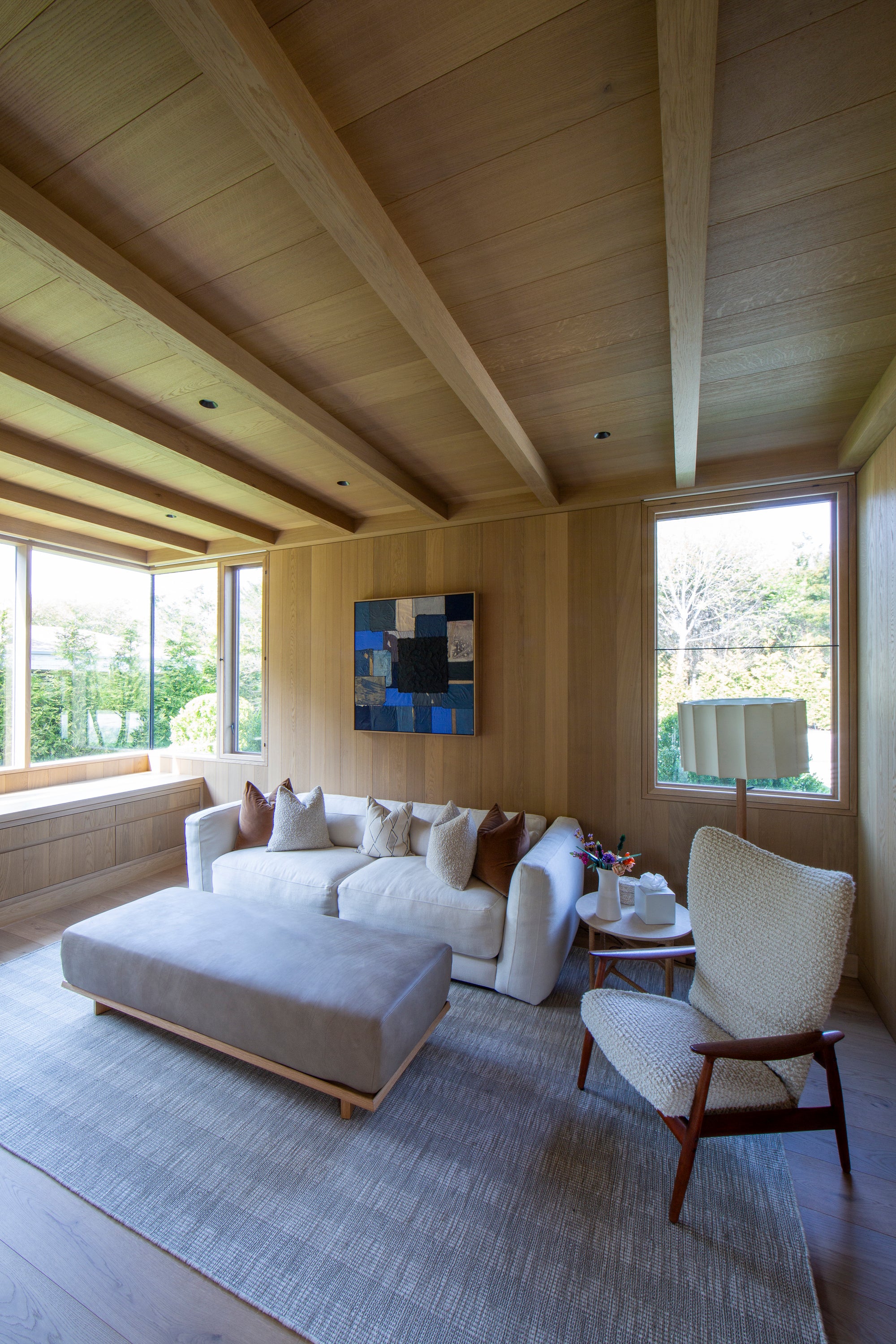

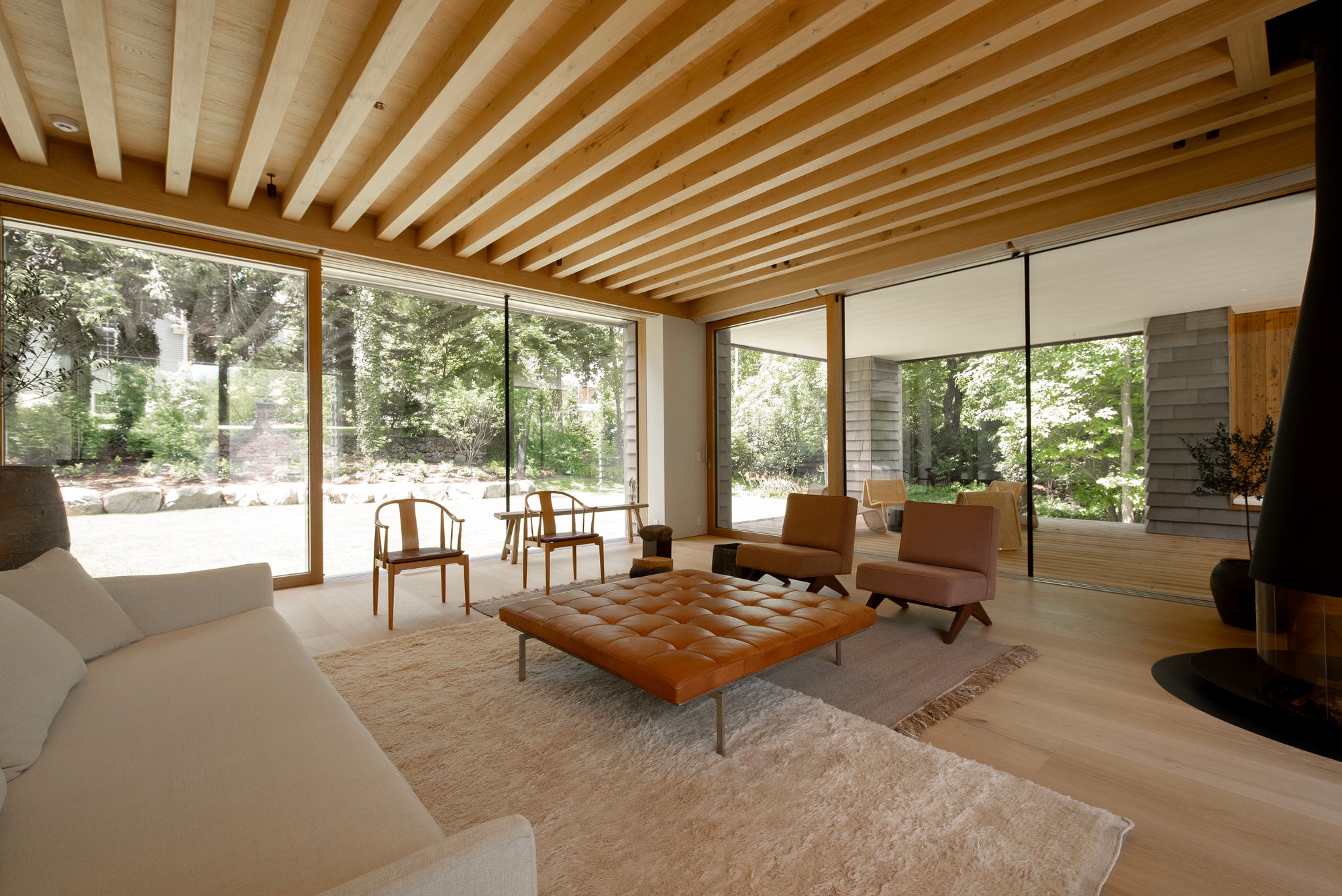

MADERA Box Beams expand the possibilities of our Seamless Wood Design® system, introducing architectural rhythm and material continuity overhead. Crafted as non-structural elements, they can conceal steel beams or be used purely to define spatial pattern and proportion. Built with precision joinery and a stable engineered core, Box Beams achieve the look and feel of solid wood in lengths up to 7000mm (23 feet). Offered in all MADERA finishes, they create a sense of cohesion and intent, transforming ceilings into an integral part of the architectural composition.



See all finishes

[ 1 / ]
Alt text

Construction

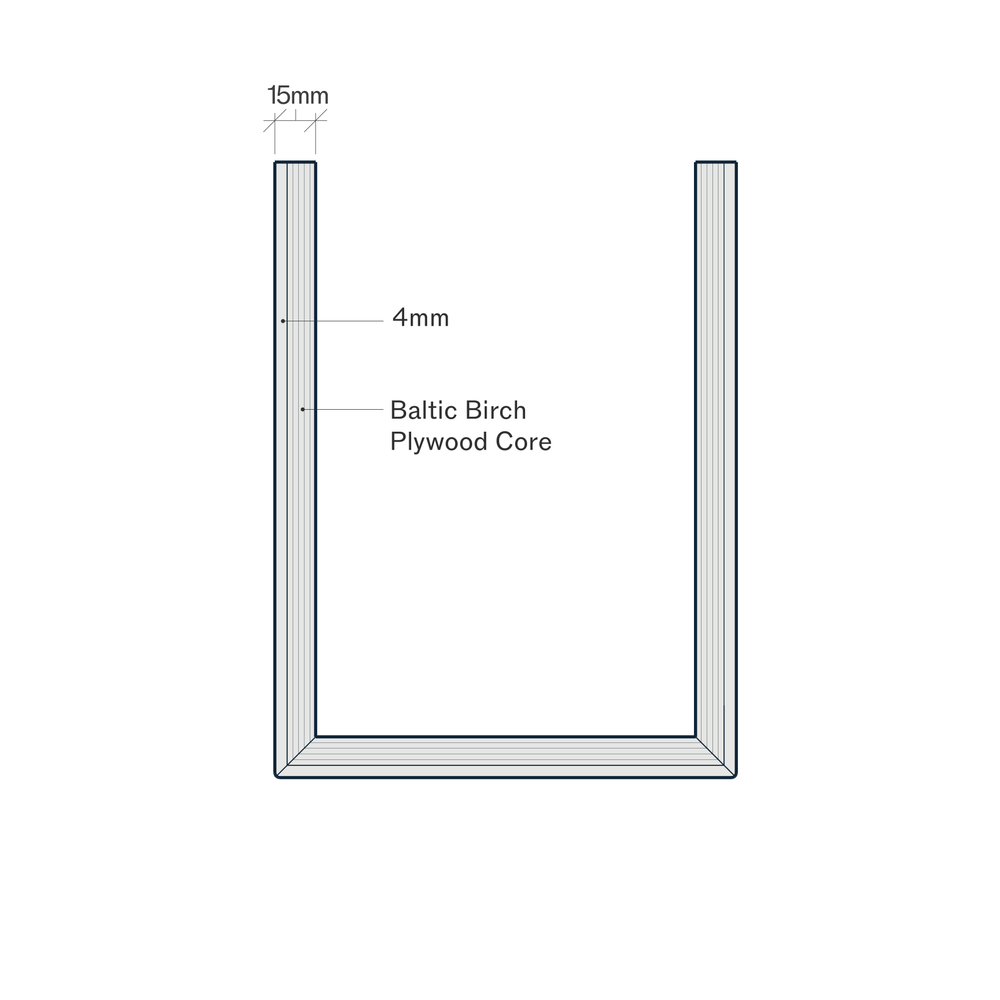

  • Duo Box Beam

    Duo Box Beam is a 2 ply construction with a 4mm sliced veneer over a baltic birch plywood. Lengths available up to 4.5m.

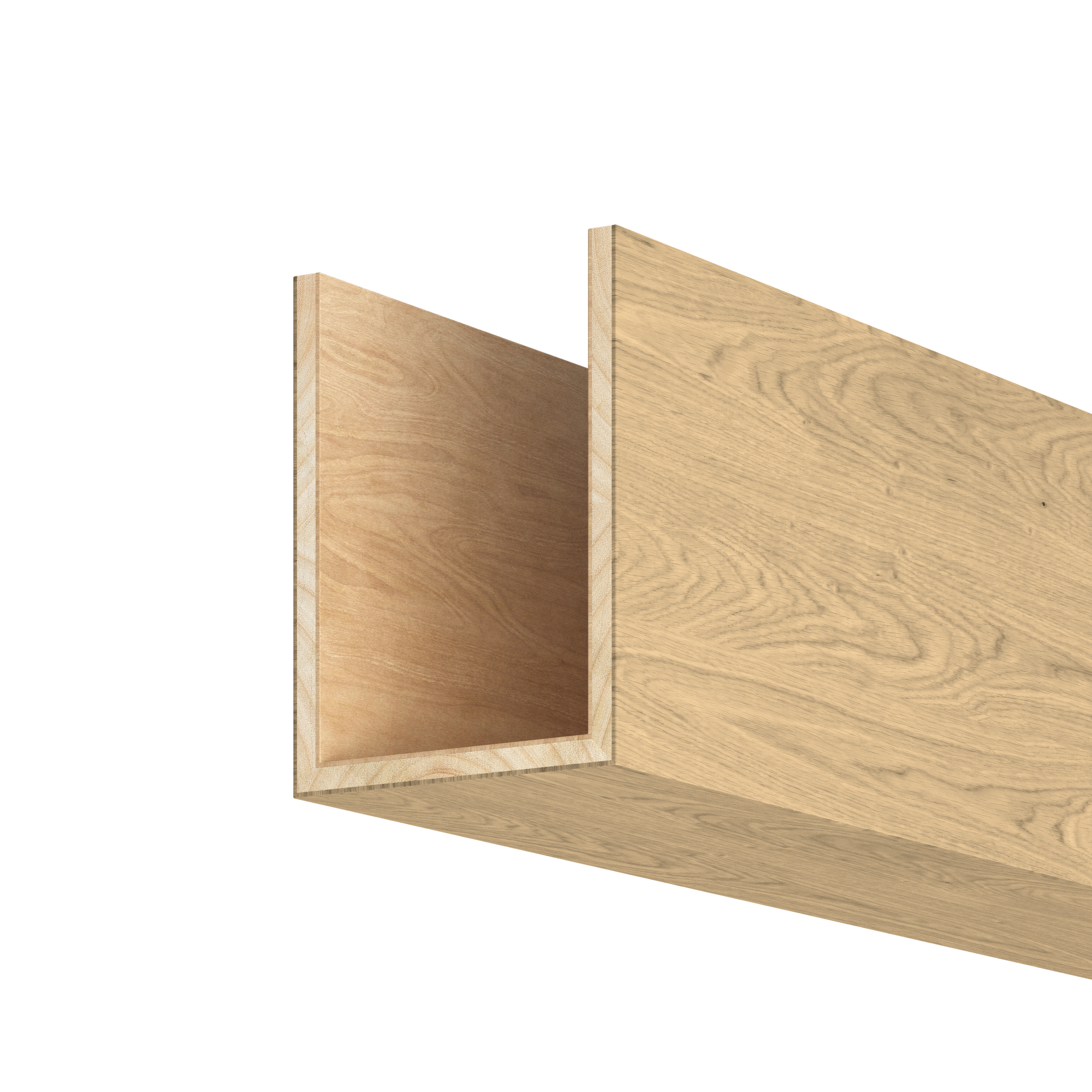

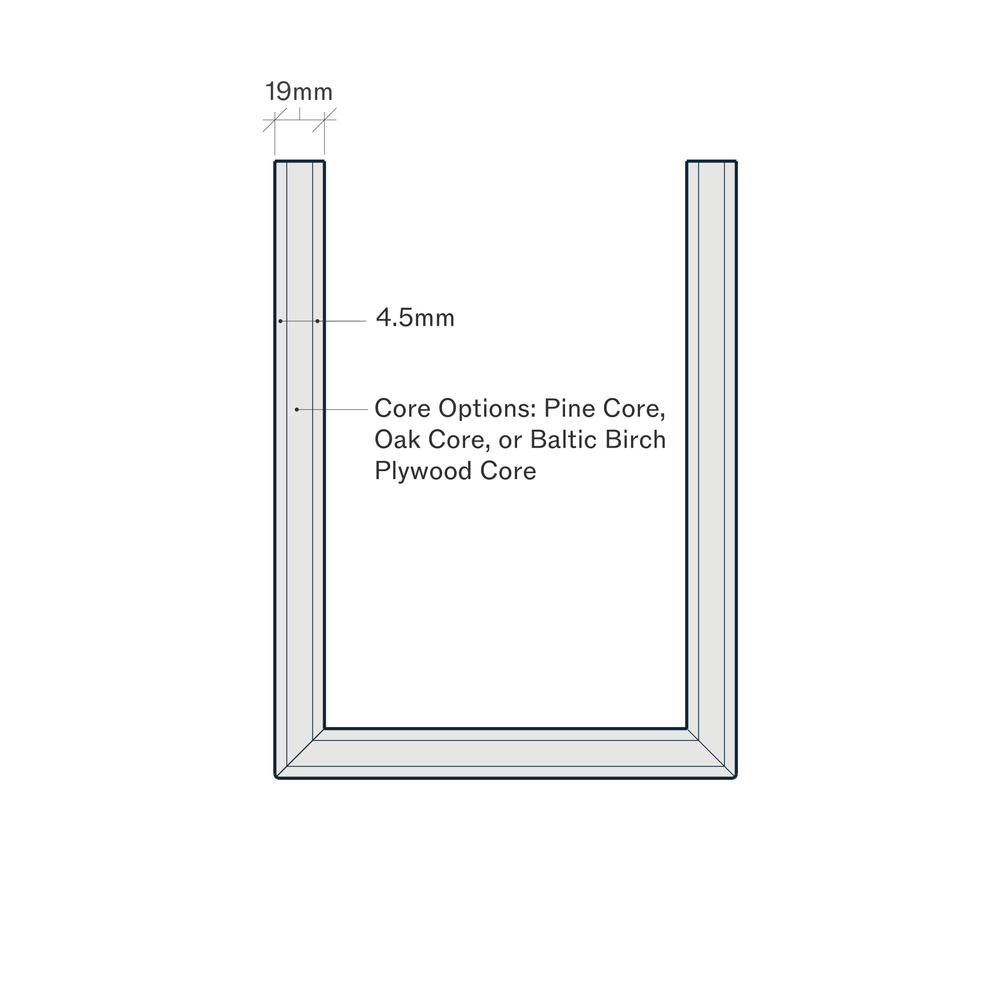

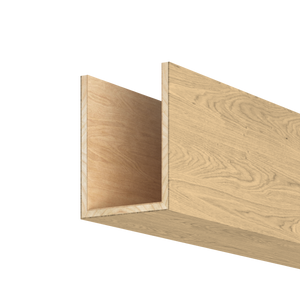

  • Trio Box Beam

    Trio Box Beam is a 3 ply construction with a 4.5mm sawn veneer with core options of pine core, oak core, or baltic birch plywood. Lengths available up to 7m.
